Fire-resistant and flame-retardant cables can maintain the integrity of the circuit in the event of a fire and ensure the functional safety of critical emergency systems. At present, foreign countries have used a large number of fire alarm systems, smoke detection systems, emergency lighting power systems, and public broadcasting systems in buildings such as large shopping malls, hospitals, office buildings, railway stations, airports, and residential houses. The following are the technical parameters of fire-retardant and fire-resistant wire and cable for cable sorting. Welcome to learn from it!
1. Rated voltage of wire and cable products (u0/u): 300/500v
2, long-term working temperature of wire and cable is 70 °C
3, the ambient temperature when laying wire and cable is not lower than: fixed laying -40 °C, non-fixed laying -15 °C
4, the minimum bending radius of wire and cable: no armored layer should be less than 6 times the cable diameter, cable with armored layer should not be less than 12 times the cable diameter
5, wire and cable at 20 °C with DC 500v voltage test stable charge 1min after the insulation resistance should not be less than 2500mω · km

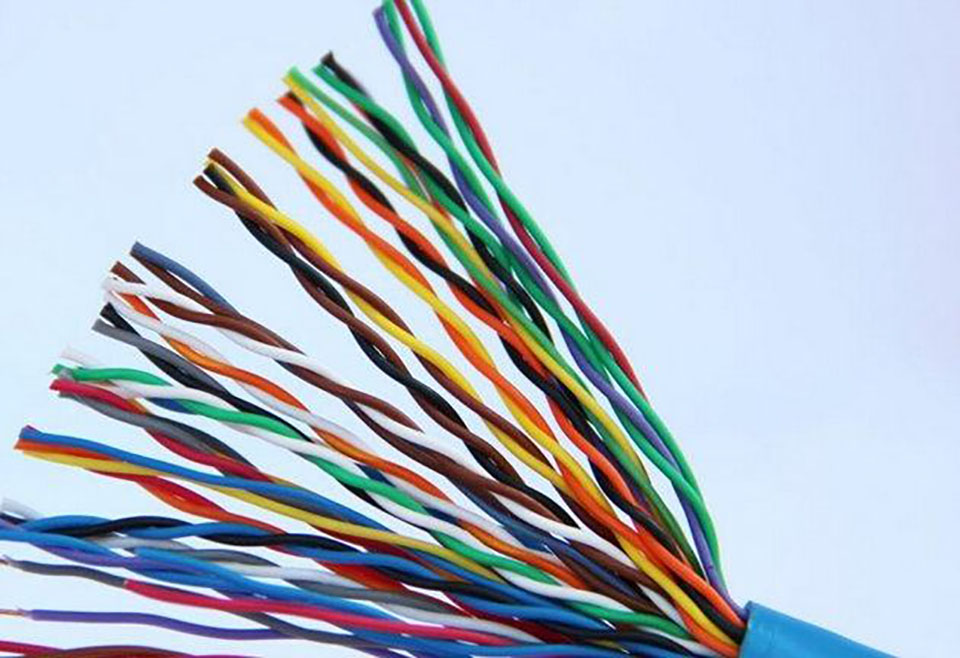

6, between the twisted pair of wire and cable and between the twist and the total should be continuous
7. The wire core and the core of the wire and cable should withstand 50hz between the core and the core. The AC 2000v voltage test will not break down for 5 minutes.
Wire and cable process flow details
1. Copper and aluminum monofilaments are drawn Wire and cable Copper and aluminum rods commonly used at room temperature are stretched through one or several passes of die holes at room temperature using a wire drawing machine to reduce the cross section, increase the length, and increase the strength. Drawing is the first process of each wire and cable company, and the main process parameter of drawing is the mold matching technology.
2. Monofilament Annealing Copper and aluminum monofilaments are heated to a certain temperature to increase the toughness of the monofilaments and reduce the strength of the monofilaments in a recrystallized manner to meet the wire and cable requirements for the guidewire cores. The key to the annealing process is to eliminate the oxidation of the copper wire.
3. Stranding of conductor In order to increase the flexibility of the wire and cable, it is easy to lay and install, and the conductive wire core is made by twisting multiple monofilaments. From the twisted form of the conductive core, it can be divided into regular twisting and irregular twisting. Irregular stranding is further divided into bundle stranding, concentric twin stranding, and special stranding. In order to reduce the occupied area of the wire and reduce the geometric size of the cable, a tightly-pressed form is adopted while the conductor is stranded, so that the ordinary round shape is mutated into a semicircle, a fan shape, a tile shape, and a tightly-pressed round shape. This type of conductor is mainly used in power cables.
Insulation Extrusion Plastic wire and cable are mainly extruded solid insulation layer, the main technical requirements for plastic insulation extrusion:
Eccentricity: The deviation of the extruded insulation thickness is an important indicator of the level of extrusion technology. Most of the product's structural dimensions and their deviations are clearly defined in the standard.
Smoothness: The surface of the extruded insulating layer is required to have a smooth surface, and no unfavorable quality problems such as surface roughness, burnt, and impurities can occur.
Density: The cross-section of the extruded insulation layer should be dense and solid, and must not be visible to the naked eye.
Technical requirements for cabling:
The first is to prevent special-shaped insulated cores from turning over and cause twisting of the cable; second is to prevent the insulation layer from being scratched. Most of the cables are completed with the completion of two additional processes:
The second is filling, ensuring the cable's roundness and stability after being cabled; one is tying and ensuring that the cable core is not loose;
Inner sheathing In order to protect the insulated core from damage caused by armouring, proper protection of the insulating layer is required;
The inner cover points: squeeze the inner cover (separation sleeve) and wrap the inner cover (cushion). Replacing the lashing band around the cushion layer and the cabling process;
Mounted on the underground cable, the work may be subject to a certain amount of positive pressure, the choice of steel strip armored structure. When the cable is laid in a place where there is both positive pressure and tensile force, the structure with internal steel wire armor should be used. Outer sheath The outer sheath is the part of the structure that protects the insulation of the wire and cable from environmental factors. The main role of the outer sheath is to improve the mechanical strength of the wire and cable, prevent chemical corrosion, moisture, water leaching, and prevent the cable from burning. According to the different requirements of the cable, the plastic jacket is directly squeezed by the extruder.
