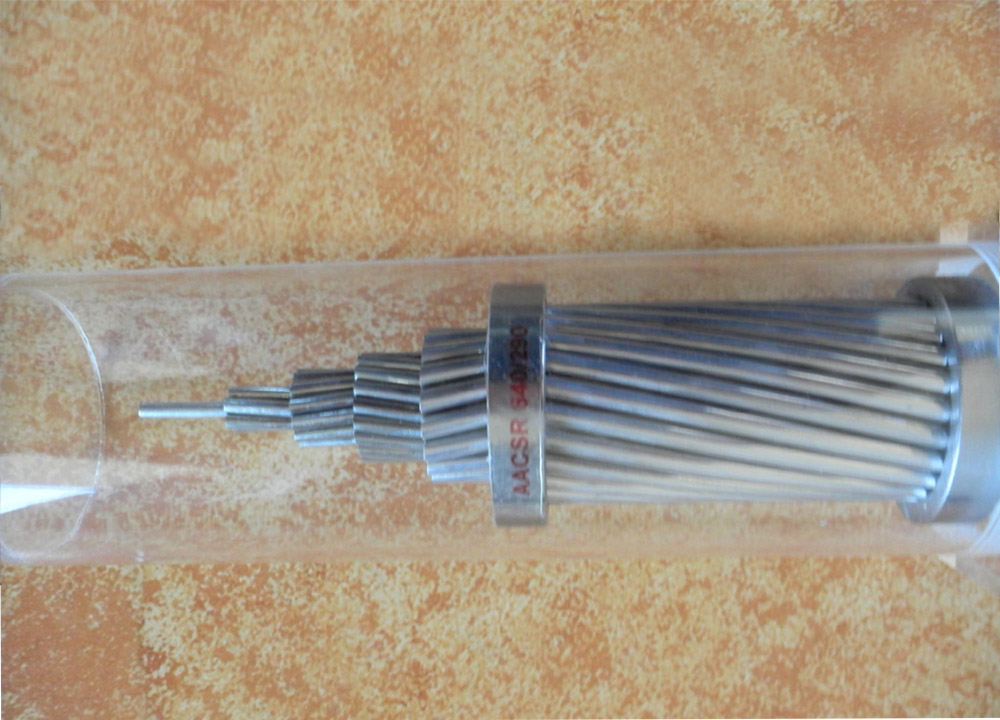

ACSR cable

Conductor:
Aluminum/Steel
Standard::
IEC61089, BS EN 50182, ASTM B232
Code Name:
Duck
Diameters:
8.07-24.21
Cross Section (mm2):
306.45,39.74,345.80

Send E-mail chat online

Company profile and production line

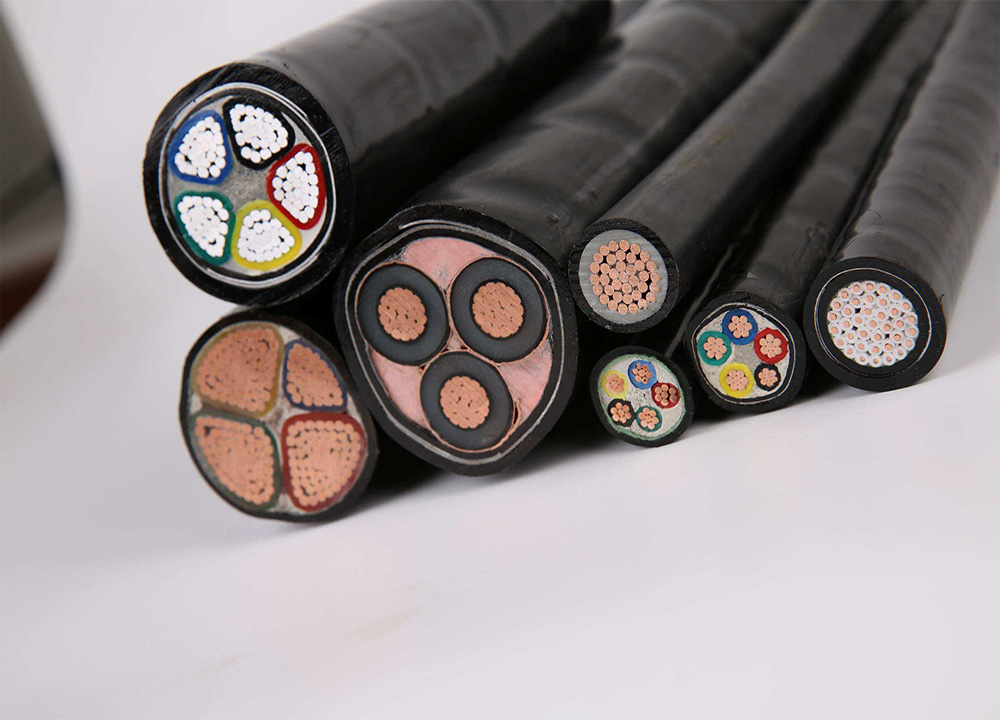

As one of top rank cable manufacturers in China, Henan Sanheng Industrial Co. has gone through more than 18 years. By now, the company owns more than 5 production lines, which are used mainly to produce power cable, control cable, pvc insulated cable, building wire, pvc insulated&sheathed cable, rubber cable, aerial cable, and bare conductor of such 8 series, which can be divided into over 50 varieties, and subdivided into 1000 specifications. All products have passed national certification., such as China Compulsory Certification, BV Certification, Nigeria SONCAP Certificate and the Certification of Production Permit of China National Industrial Products. And we also have ability to produce the products which meet international standard, such as IEC, CE, RoHS and so on.

product name	Definition	classify	abbreviation	model	character
Steel (aluminum clad steel, aluminum alloy) core aluminum strand.	The single or multilayer aluminum strand wire is twisted into a reinforced conductor outside the galvanized steel core (aluminum clad steel core or aluminum alloy core) line.	aluminium cable steel reinforced	ACSR	JL/G1A JL/G1B JL/G2A JL/G2B JL/G3A	Simple structure, good electrical conductivity, high mechanical strength, high tensile strength, large transmission capacity, convenient erection and maintenance, low cost of line.
		aluminium conductor steel-reinforced cable(ACSR cable)	ACSR/AW	JL/LB1A	It has the characteristics of steel core aluminum strand, but the load flow, tensile strength, anti-corrosion, and light weight are better than ACSR.
		Aluminum alloy aluminum stranded wire.	JL/LHA1 JL/LHA2	JL/LHA2 JL/LHA1	Compared with ACSR, it has the advantages of small loss, large transportation capacity, corrosion resistance, long life and low annual cost, which is in line with the concept of "two types and three new" proposed by state grid.
Steel (aluminum clad steel) aluminum alloy stranded wire.	The single or multi-layer aluminum alloy strand wire is twisted into the reinforced wire outside the galvanized steel core (aluminum clad steel core) line.	Aluminum alloy aluminum stranded wire.	AACSR	JLHA2/G1A、JLHA2/G1B、 JLHA2/G2A 、JLHA2/G2B 、 JLHA2/G3A 、JLHA1/G1A、 JLHA1/G1B、JLHA1/G2A、 JLHA1/G2B、 JLHA1/G3A；	The load flow is slightly lower than that of ACSR, but the tensile strength, light weight, continuous allowable temperature, and the arc characteristics are better than the ACSR, which is more suitable for the heavy ice zone, large span and large length area in alpine valleys.
Steel (aluminum clad steel) aluminum alloy stranded wire.		Aluminum clad steel core aluminium stranded wire.	AACSR/AW	JL/LB1A	It has the characteristics of aluminum alloy strand, but anti-corrosion and high conductivity.
Steel (aluminum clad steel) core heat resistant aluminum alloy stranded wire.	The single-layer or multi-layer heat-resistant aluminum alloy strands are twisted in a reinforced conductor outside the galvanized steel core (aluminum clad steel core) line.	Steel core heat-resistant aluminum alloy stranded wire.	TACSR	JNRLH60/G1A、JNRLH60/G1B、 JNRLH60/G2A 、JNRLH60/G2B 、 JNRLH60/G3A、 JNRLH58/G1A、 JNRLH58/G1B、JNRLH58/G2A 、 JNRLH58/G2B 、JNRLH58/G3A；	With the characteristics of AACSR, the long-term operating temperature is up to 150 meters, and the transmission capacity of the line is improved.
		Aluminum clad steel core heat resistant aluminum alloy stranded wire.	TACSR/AW	JNRLH58/LB1A, JNRLH60/LB1A。	The characteristics of TACSR, corrosion resistance and load flow are better than TACSR.

ACSR cable is a kind of steel core aluminum stranded wire, has simple structure, convenient erection and maintenance, line low cost, large transmission capacity, and across the rivers and the valley of laying special geographical conditions, has good conductivity and enough mechanical strength, tensile strength, pole distance can be amplified, etc.Therefore, it is widely used in the overhead transmission and distribution lines of various voltage grades.
