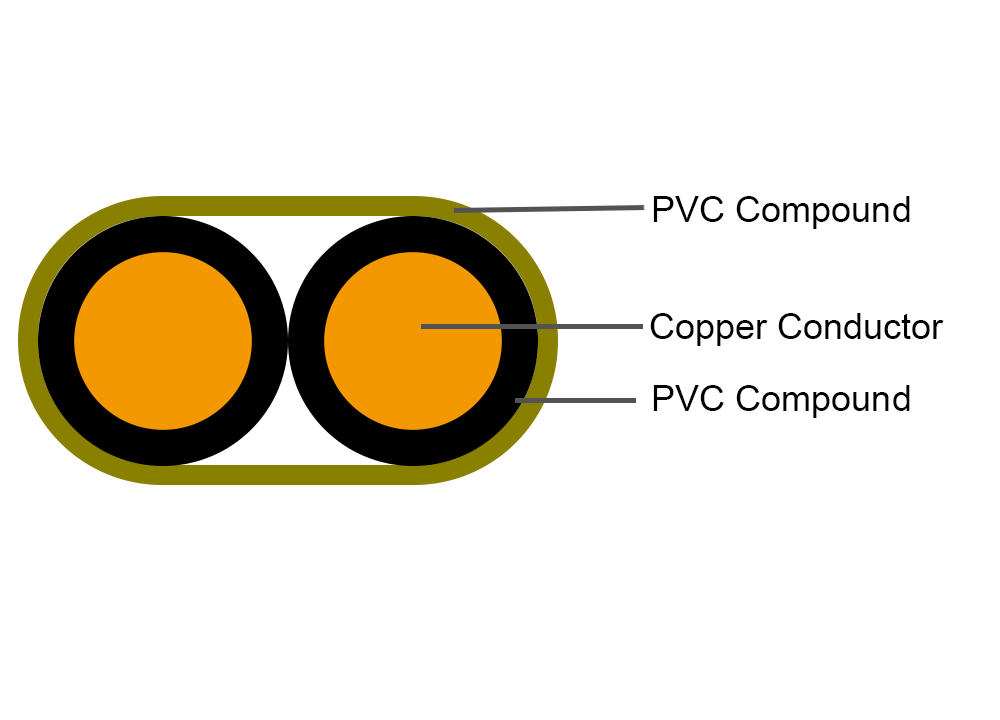

Class 1/2 copper conductor (solid)
PVC Compound
Red, Blue, Yellow/Green or as request
PVC Compound
White, Black
2000 V
JB8734.2
| Type | Name |
| BV |
Single-core non-sheathed cable with solid conductor for general purposes |
| RV |
Single-core non-sheathed cable with flexible conductor for general puroses |
| BV |
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70℃ |
| RV |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70℃ |
| BV-90 |
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90℃ |
| RV-90 |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90℃ |
| BVV |
Light PVC sheathed cable |
| RVB |
Flat non-sheathed flexible cable |
| RVS |
PVC sheathed flexible cable |
Ask us. Choose the cable that works best for you.
| Cores/ Norminal Section |
Rated Voltage | No of Wires | Insulation Thickness | Sheath Thickness | Size | Max.Conductor Resistance at 20℃ | Min. Insulation Resistance at 70℃ | ||
| （mm2） | （mm） | （mm） | （mm） | （MΩ.km） | （MΩ.km） | ||||
| Upper | Lowest | Copper | Tinned Copper |
||||||
| 2×0.75 | 300/500V | 1 | 0.6 | 0.9 | 3.8×5.9 | 4.6×7.1 | 24.5 | 24.8 | 0.012 |
| 2×1.0 | 300/500V | 1 | 0.6 | 0.9 | 3.9×6.1 | 4.8×7.4 | 18.1 | 18.2 | 0.011 |
| 2×1.5 | 300/500V | 1 | 0.7 | 0.9 | 4.4×7.0 | 5.3×8.5 | 12.1 | 12.2 | 0.011 |
| 2×2.5 | 300/500V | 1 | 0.8 | 1 | 5.1×8.4 | 6.2×10.1 | 7.41 | 7.56 | 0.01 |
| 2×4 | 300/500V | 1 | 0.8 | 1 | 5.6×9.2 | 6.7×11.1 | 4.61 | 4.7 | 0.0085 |
| 2×4 | 300/500V | 7 | 0.8 | 1 | 5.7×9.5 | 6.9×11.5 | 4.61 | 4.7 | 0.008 |
| 2×6 | 300/500V | 1 | 0.8 | 1.1 | 6.2×10.4 | 7.5×12.5 | 3.08 | 3.11 | 0.007 |
| 2×6 | 300/500V | 7 | 0.8 | 1.1 | 6.4×10.8 | 7.8×13.0 | 3.08 | 3.11 | 0.0065 |
| 2×10 | 300/500V | 7 | 1 | 1.2 | 7.9×13.4 | 9.5×16.2 | 1.83 | 1.84 | 0.0065 |
| 3×0.75 | 300/500V | 1 | 0.6 | 0.9 | 3.8×7.9 | 4.6×9.6 | 24.5 | 24.8 | 0.012 |
| 3×1.0 | 300/500V | 1 | 0.6 | 0.9 | 3.9×8.4 | 4.8×10.1 | 18.1 | 18.2 | 0.011 |
| 3×1.5 | 300/500V | 1 | 0.7 | 0.9 | 4.4×9.6 | 5.3×11.7 | 12.1 | 12.2 | 0.011 |
| 3×2.5 | 300/500V | 1 | 0.8 | 1 | 5.1×11.6 | 6.2×14.0 | 7.41 | 7.56 | 0.01 |
| 3×4 | 300/500V | 1 | 0.8 | 1.1 | 5.8×13.1 | 7.0×15.8 | 4.61 | 4.7 | 0.0085 |
| 3×4 | 300/500V | 7 | 0.8 | 1.1 | 5.9×13.5 | 7.1×16.3 | 4.61 | 4.7 | 0.008 |
| 3×6 | 300/500V | 1 | 0.8 | 1.1 | 6.2×14.5 | 7.5×17.5 | 3.08 | 3.11 | 0.007 |
| 3×6 | 300/500V | 7 | 0.8 | 1.1 | 6.4×15.1 | 7.8×18.2 | 3.08 | 3.11 | 0.0065 |
| 3×1 | 300/500V | 7 | 1 | 1.2 | 7.9×19.0 | 9.5×23.0 | 1.83 | 1.84 | 0.0065 |
Ask us. Choose the cable that works best for you.
Ask us. Choose the cable that works best for you.
