Submersible Pump Cable

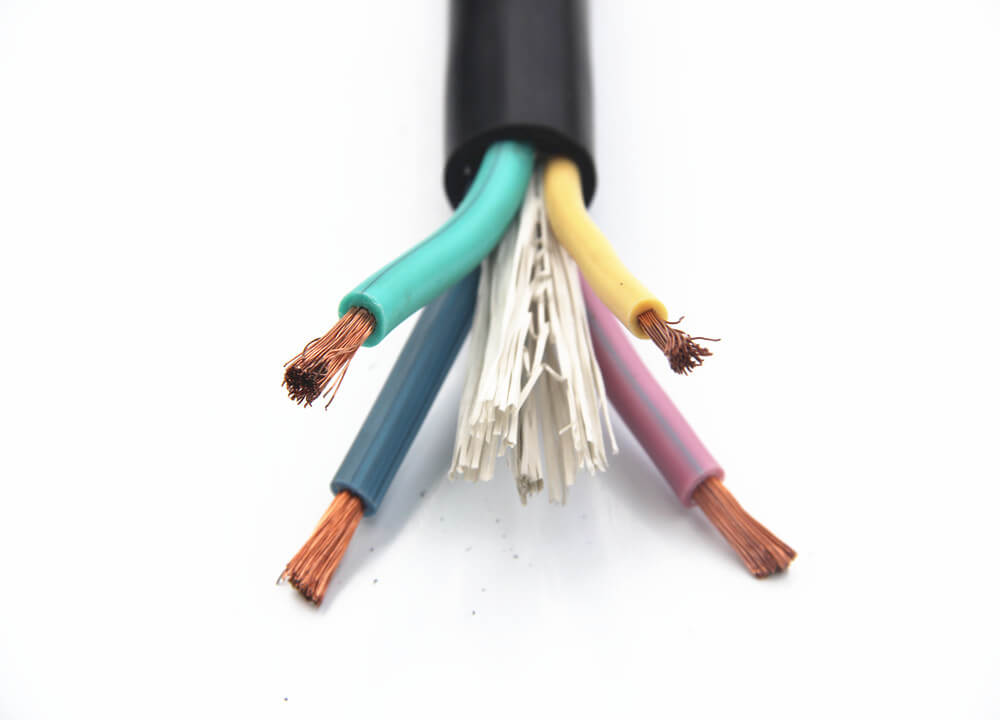

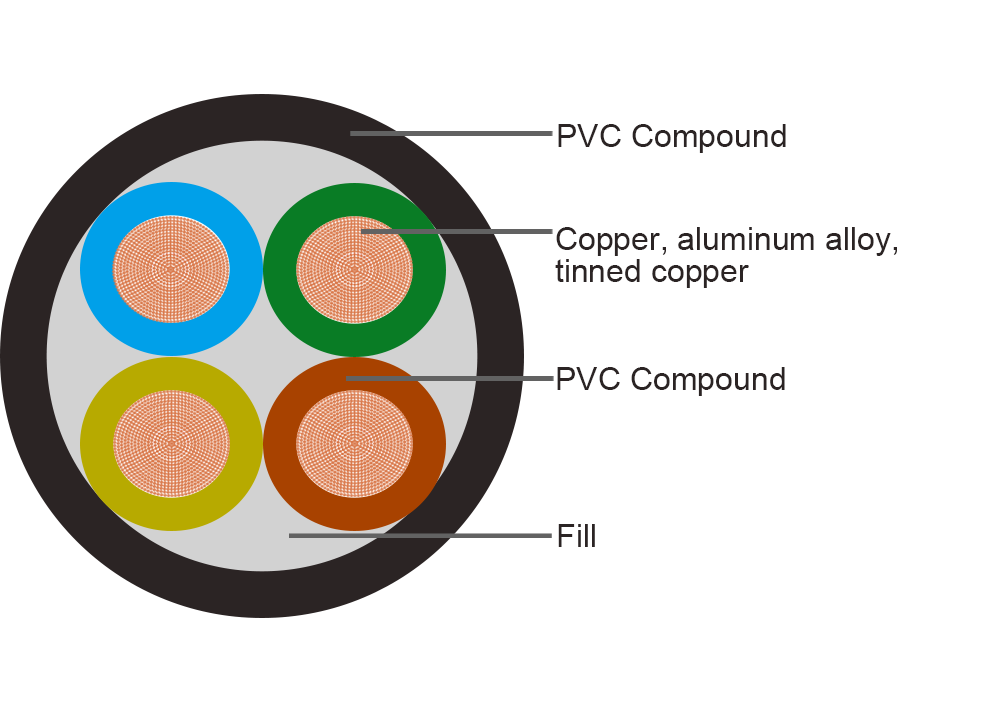

Conductor:
Copper, aluminum alloy, tinned copper
Insulation:
PVC Compound
Sheath:
PVC Compound
Norminal Votage:
300/500V, 450/750V
Standard:
GB/T12706.2-2008

Send E-mail chat online

Light pvc cable, used for easy-duty and medium mechanical loads in dry areas. Suitable for household, kitchens, offices and workshops (for inst. tailoring) for smaller electrical devices (washing-machines, vacuum-cleaners, irons, household appliances, soldering sets etc.) and mobile devices operating in heavier conditions, such as light industrial and agricultural machines. Not suitable for permanent outdoor use. Ozone-resistant, allowed contact with oils and greases.

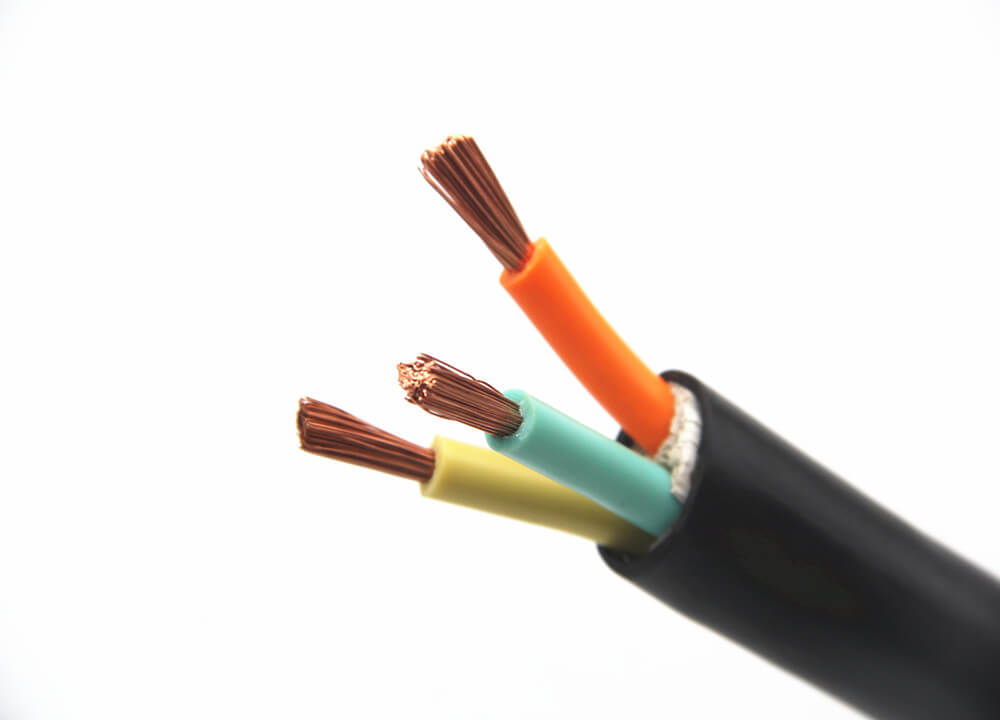

Description

Description	Submersible Pump Cable
Conductor:	Stranded Copper Conductor of Class 5/6 (Flexible)
Insulation:	PVC Compound
Insulation Color	Red, Blue, Grey, Yellow/Green or as request
Sheath	PVC Compound
Sheath Color	Black
Temperature Range:	-30 - 60℃
Nominal Voltage:	300/500V
Test Voltage:	2000 V
Minimal Bending Radius:	7.5D
Standard	IEC 60332

Technical Data

Cores/ Section	Conductor Construction	Conductor Diameter	Insulation Thickness	Sheath Thickness	External Diameter	Conductor resistance at 20 °C	Cu weight	Cable weight
	nominal	max	nominal	nominal	min-max	max		approx
N x mm²	n x mm	mm	mm	mm	mm	Ω/km	kg/km	kg/km
1 x 1.5	30 x 0.25	1.8	0.8	1.4	5.7 – 7.1	13.3	14.4	57
1 x 2.5	50 x 0.25	2.6	0.9	1.4	6.3 – 7.9	7.98	24	79
1 x 4	56 x 0.30	3.2	1.0	1.5	7.2 – 9.0	4.95	38.4	100
1 x 16	84 x 0.30	3.9	1.0	1.6	7.9 – 9.8	3.30	57.6	135
1 x 10	80 x 0.40	5.1	1.2	1.8	9.5 – 11.9	1.91	96	204
1 x 16	128 x 0.40	6.3	1.2	1.9	10.8 – 13.4	1.21	153.6	286
1 x 25	200 x 0.40	7.8	1.4	2.0	12.7 – 15.8	0.780	240	390
1 x 35	280 x 0.40	9.2	1.4	2.2	14.3 – 17.9	0.554	336	523
1 x 50	400 x 0.40	11	1.6	2.4	16.5 – 20.6	0.386	480	699
1 x 70	356 x 0.50	13	1.6	2.6	18.6 – 23.3	0.272	672	950
1 x 95	485 x 0.50	15.1	1.8	2.8	20.8 – 26.0	0.206	912	1202
1 x 120	614 x 0.50	17	1.8	3.0	22.8 – 28.6	0.161	1152	1524
1 x 150	765 x 0.50	19	2.0	3.2	25.2 – 31.4	0.129	1440	1839
1 x 185	944 x 0.50	21	2.2	3.4	27.6 – 34.4	0.106	1776	2184
1 x 240	1225 x 0.50	24	2.4	3.5	30.6 – 38.3	0.0801	2304	2840
1 x 300	1530 x 0.50	27	2.6	3.6	33.5 – 41.9	0.0641	2880	3413
1 x 400	2034 x 0.50	31	2.8	3.8	37.4 – 46.8	0.0486	3840	4600
1 x 500	1768 x 0.60	35	3.0	4.0	41.3 – 52.0	0.0384	4800	6000
2 x 1	32 x 0.20	1.5	0.8	1.3	7.7 – 10.0	19.5	19.2	105
2 x 1.5	30 x 0.25	1.8	0.8	1.5	8.5 – 11.0	13.3	28.8	136
2 x 2.5	50 x 0.25	2.6	0.9	1.7	10.2 – 13.1	7.98	48	190
2 x 4	56 x 0.30	3.2	1.0	1.8	11.8 – 15.1	4.95	76.8	271
2 x 6	84 x 0.30	3.9	1.0	2.0	13.1 – 16.8	3.30	115.2	372
2 x 10	80 x 0.40	5.1	1.2	-	17.7 – 22.6	1.91	192	643
2 x 16	128 x 0.40	6.3	1.2	-	20.2 – 25.7	1.21	307.2	810
2 x 25	200 x 0.40	7.8	1.4	-	24.3 – 30.7	0.780	480	1160
3 G 1	32G0.20	1.5	0.8	1.4	8.3 – 10.7	19.5	28.8	125
3 G 1.5	30G0.25	1.8	0.8	1.6	9.2 – 11.9	13.3	43.2	162
3 G 2.5	50G0.25	2.6	0.9	1.8	10.9 – 14.0	7.98	72	229
3 G 4	56G0.30	3.2	1.0	1.9	12.7 – 16.2	4.95	115.2	329
3 G 6	84G0.30	3.9	1.0	2.1	14.1 – 18.0	3.30	172.8	452
3 G 10	80G0.40	5.1	1.2	3.3	19.1 – 24.2	1.91	288	776
3 G 16	128G0.40	6.3	1.2	3.5	21.8 – 27.6	1.21	460.8	1058
3 G 25	200G0.40	7.8	1.4	3.8	26.1 – 33.0	0.780	720	1473
3 G 35	280G0.40	9.2	1.4	4.1	29.3 – 37.1	0.554	1008	1728
3 G 50	400G0.40	11	1.6	4.5	34.1 – 42.9	0.386	1440	2302
3 G 70	356G0.50	13	1.6	4.8	38.4 – 48.3	0.272	2016	3400
3 G 95	485G0.50	15.1	1.8	5.3	43.3 – 54.0	0.206	2736	4450
3 G 120	614G0.50	17	1.8	5.6	47.4 – 60.0	0.161	3456	5180
3 G 150	765G0.50	19	2.0	6.0	52.0 – 66.0	0.129	4320	6500
4 G 1	32G0.20	1.5	0.8	1.5	9.2 – 11.9	19.5	38.4	163
4 G 1.5	30G0.25	1.8	0.8	1.7	10.2 – 13.1	13.3	57.6	197
4 G 2.5	50G0.25	2.6	0.9	1.9	12.1 – 15.5	7.98	96	279
4 G 4	56G0.30	3.2	1.0	2.0	14.0 – 17.9	4.95	153.6	402
4 G 6	84G0.30	3.9	1.0	2.3	15.7 – 20.0	3.30	230.4	561
4 G 10	80G0.40	5.1	1.2	3.4	20.9 – 26.5	1.91	384	935
4 G 16	128G0.40	6.3	1.2	3.6	23.8 – 30.1	1.21	614.4	1286
4 G 25	200G0.40	7.8	1.4	4.1	28.9 – 36.6	0.780	960	1692
4 G 35	280G0.40	9.2	1.4	4.4	32.5 – 41.1	0.554	1344	2266
4 G 50	400G0.40	11	1.6	4.8	37.7 – 47.5	0.386	1920	3021
4 G 70	356G0.50	13.1	1.6	5.2	42.7 – 54.0	0.272	2688	4121
4 G 95	485G0.50	15.1	1.8	5.9	48.4 – 61.0	0.206	3648	5361
4 G 120	614G0.50	17	1.8	6.0	53.0 – 66.0	0.161	4608	6546
4 G 150	765G0.50	19	2.0	6.5	58.0 – 73.0	0.129	5760	8095
4 G 185	944G0.50	21	2.2	7.0	64.0 – 80.0	0.106	7104	9652
4 G 240	1225G0.50	24	2.4		72.0 – 91.0	0.0801	9216	12614
4 G 300	1530G0.50	27	2.6		80.0 – 101	0.0641	11520	15200
5 G 1	32 x 0.20	1.5	0.8	1.6	11.6	19.5	48	168
5 G 1.5	30 x 0.25	1.8	0.8	1.8	11.2 – 14.4	13.3	72	234
5 G 2.5	50 x 0.25	2.6	0.9	2.0	13.3 – 17.0	7.98	120	348
5 G 4	56 x 0.30	3.2	1.0	2.2	15.6 – 19.9	4.95	192	470
5 G 6	84 x 0.30	3.9	1.0	2.5	17.5 – 22.2	3.30	288	620
5 G 10	80 x 0.40	5.1	1.2	3.6	22.9 – 29.1	1.91	480	1155
5 G 16	128 x 0.40	6.3	1.2	3.9	26.4 – 33.3	1.21	768	1460
5 G 25	200 x 0.40	7.8	1.4	4.4	32.0 – 40.4	0.780	1200	2380
5 G 35	280 x 0.40	9.2	1.4	4.5	37 – 42	0.554	1680	2716
5 G 50	400 x 0.40	11	1.6	5.0	43 – 47	0.386	2400	3809
5 G 70	356 x 0.50	13.1	1.6	5.5	45 – 50	0.272	3360	5087
7 G 1.5	30 x 0.25	1.8	0.8	2.5	14 – 15.7	13.3	100.8	335
12 G 1.5	30 x 0.25	1.8	0.8	2.9	17.6 – 22.4	13.3	172.8	560
19 G 1.5	30 x 0.25	1.8	0.8	2.5	22.5 – 26.6	13.3	273.6	795
24 G 1.5	30 x 0.25	1.8	0.8	3.5	24.3 – 30.7	13.3	345.6	1000
36 G 1.5	30 x 0.25	1.8	0.8	3.8	33.0	13.3	518.4
7 G 2.5	50 x 0.25	2.6	0.9	2.7	16.5 – 18.2	7.98	168	520
12 G 2.5	50 x 0.25	2.6	0.9	3.1	18.5 – 22.5	7.98	288	760
19 G 2.5	50 x 0.25	2.6	0.9	3.5	24.6 – 31	7.98	456	1075
24 G 2.5	50 x 0.25	2.6	0.9	3.9	28.8 – 36.4	7.98	576	1390
36 G 2.5	50 x 0.25	2.6	0.9	4.3	37.5	7.98	864
